Response Point System Specifications

· System Capacity:

Maximum Analog PSTN Lines - 8
Equipped Analog PSTN Lines - 4

Maximum Extensions - 50

· Interface:

Telephony Interface - 1 module with 4 FXO ports, 1 expansion slot for additional 4 FXO ports, loop start analog lines, RJ11 connector (1 pair)
LAN Interface - 10/100/1000 Mbps auto-sensing 1 RJ45 connector
USB - 3 USB port for future expansion, USB 2.0/1.1 compliant
Audio Port - 1 line out jack for external PA system, 1 line in jack for future expansion
On-Box Management - 16 characters, 5 x7 dot LCD, 4 way/enter button for selecting option, IP button for checking IP address, reset button for restart the DOS-A50, tri-color LED for system status checking
Event Log - Ease of troubleshooting/administration
Protocol and Voice:
Protocols - SIP 2.0 (RFC-3261), RTP (Transfer Protocol)
Voice Quality - VAD (Voice Activity Detection), CNG (Comfortable Noise Generation), Line Echo Cancellation (G.168), adaptive Jitter Buffer Management
Voice Code - G.711 (u-law)
Caller ID - Bellcore/DTMF

· Physical:

Power - External Power Adapter
Voltage: 100VAC~240VAC
Frequency: 50/60Hz
Dimension (L*W*H) - 12in x 10in x 3½in (315.84mm * 249.40mm * 91.36mm)

· Environmental:

Operating Temperature - 32
to 104 (0 to 40)
Storage Temperature - -67
to 158 (-55 to 70)
Operating Humidity - 90 to 95% RH at 104
(40), non-condensing
Storage Humidity - 90 to 95% RH at 104
(40), non-condensing

· Compliance:

EMI Certification - FCC part 15 Class A
PTT Regulation - FCC part 68

Contact Us:
Mail :rp@infologicpr.com

Voice : 787-396-8091

Response Point is the easier way for small businesses to communicate.

Microsoft® Response Point™ is revolutionary phone system software easy to use and manage. Delivered on intuitive hardware from Syspine--the complete solution in one affordable package.

· Main Features:

-Auto Receptionist - Answers frequently asked questions such as “What are your hours?” and “What is your address?”, routes calls to individual employees or specific groups (i.e. sales, customer service) with Voice recognition capability
-Voicemail - Built-in voicemail system, voice mail messaging forwarding to E-mail, approximately 100 hours voicemail storage
-Microsoft Office Outlook Integration - Import contacts from Microsoft Outlook, voice dialing to contacts imported from Microsoft Outlook
-Client Utility - Customize personal settings, screen pop-ups display caller ID name and number or Outlook contact look up, call forward settings user management
-Administration - Seamless setup and administration, phone auto discovery and provisioning, set up Wizards for ease of configuration
-External Access - Specified number by caller ID authentication and password protected external access to user phones
-Bypass Receptionist - Bypass Receptionist function for specific outside calls to specific station
-Group Call Ringing - Ring all phones in a particular department
-PSTN Line - Plug and play telephone line support, reserve specific lines for Incoming calls only

  Contact Us:
Mail :rp@infologicpr.com
Voice : 787-396-8091

Buy Response Point Today!
Response Point Logo
Response Point & Infologic here!

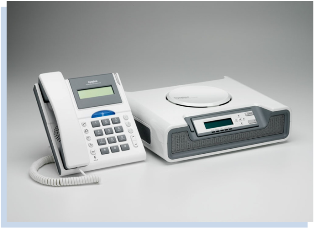

Response Point Equipment Base
